Lub tsheb kho gecko tsis muaj kev cai siab rau qhov tob thiab kev nyiam huv ntawm pob zeb kab noj hniav, yooj yim rau nruab, thiab pheej yig. Xaiv qhov tsim kom zoo qhov tob raws li cov tuab ntawm cov txheej txheem tawv. Raws li qhov embedding qhov tob nce, lub zog tensile nce ntxiv, thiab cov khoom no muaj lub zog nthuav dav muaj nuj nqi.Muaj cov khoom siv: steel hlau, carbon hlau thiab lwm yam ntaub ntawv hlau.

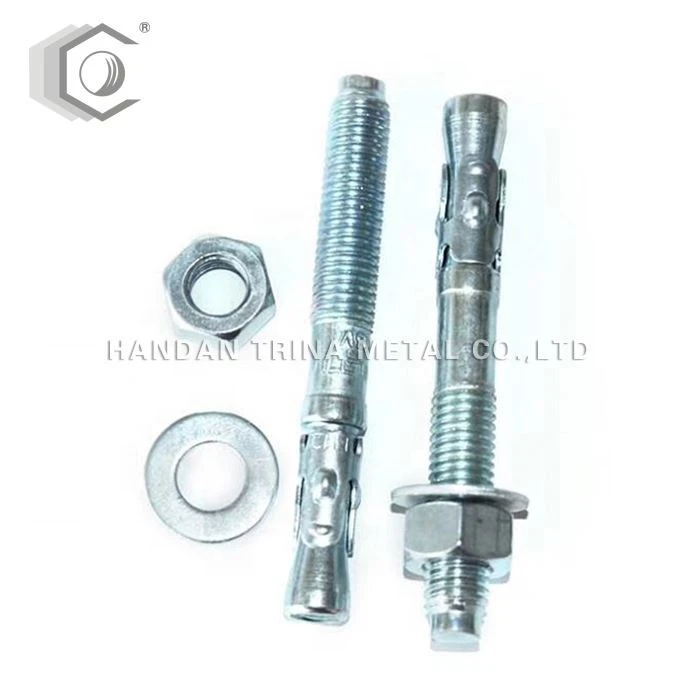

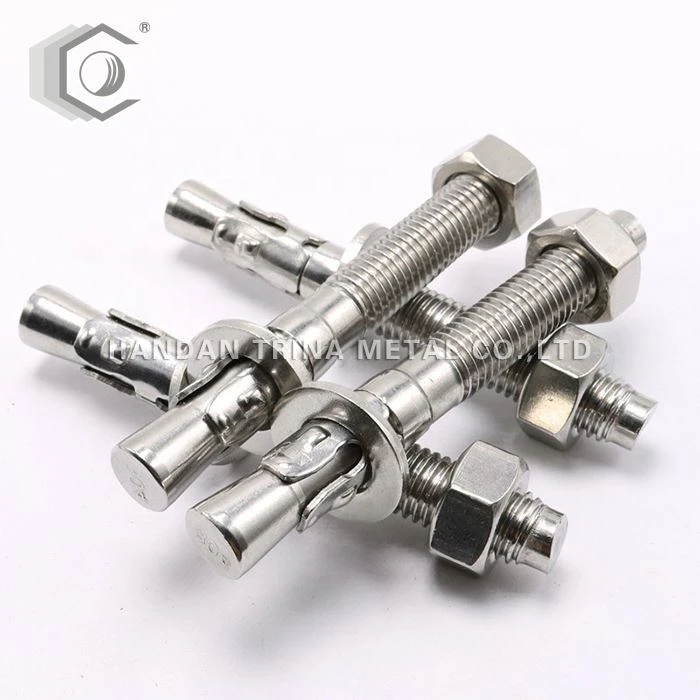

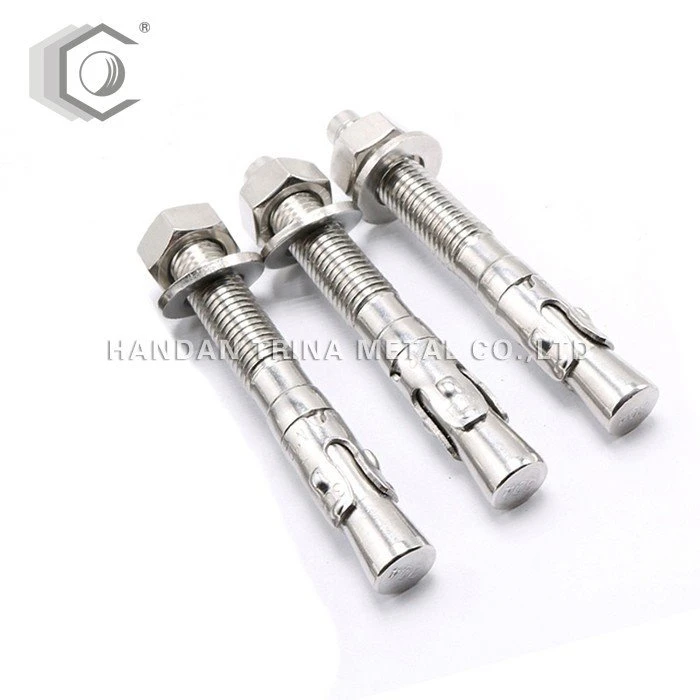

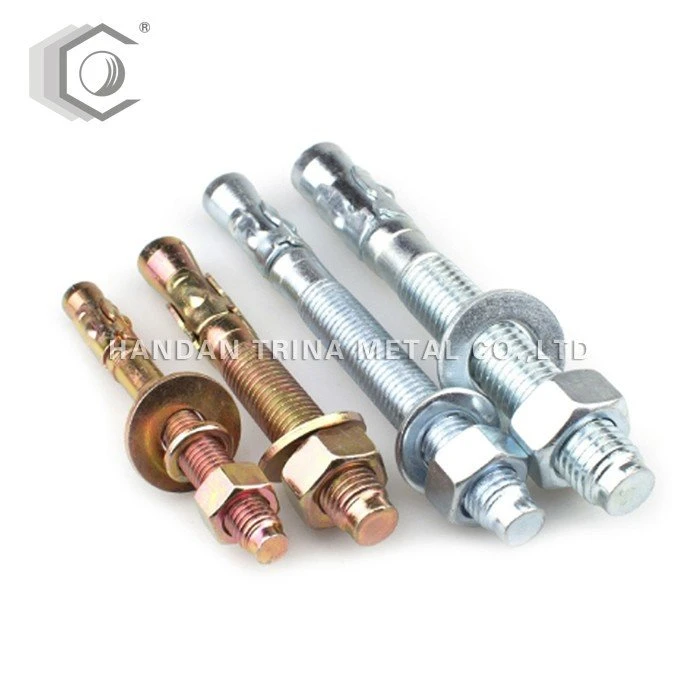

WEDGE THAUJ TOG RAU NKOJ ELEVATOR BOLT
SIZE: M6-M24 QIB: 4.8,8.8
NTSEV: XIAV DAWB ZINC, DAJ ZINC PLATING
Coob	PCS (THAWV)	LUJ / MPCS (KG)
6*60	1800	13
6*80	1600	16.2
6*100	1400	19.5
8*60	1000	25.3
8*80	800	31
8*100	720	36.7
8*120	640	42.4
8*150	560	51.1
10*60	600	43.5
10*70	560	47.9
10*80	560	52.4
10*100	480	61.4
10*120	400	71.4
10*150	360	85.3
10*200	280	108.5
12*80	360	78.8
12*100	320	92
12*120	280	105.3
12*150	240	125.3
12*180	200	145.8
12*200	180	159.1
16*80	200	150.1
16*100	160	174.9
16*110	160	187.4
16*120	160		199.7
16*150	120		235.6
16*180	100		272.6
16*200	100		300.4
16*250	80		362.9
16*300	60		435
20*100	112		292
20*120	96		332
20*150	80		392
20*160	48		411.5
20*180	60		451
20*200	60		490
20*250	52		590
20*300	40		689
24*100	48		441.5
24*120	48		499.5
24*150	48		586.5
24*180	10		673.5
24*200	40		731.5
24*250	28		871.5
24*300	28		1011.5

Khoom Nta:

Cov khoom no muaj xov ntev thiab yooj yim dua rau nruab, thiab feem ntau yog siv hauv cov chaw hnyav.

Yuav kom tau txais qhov txhim khu kev qha, loj fastening quab yuam, nws yog qhov tsim nyog los xyuas kom meej tias lub nplhaib clamp tsau rau ntawm lub gecko yog nthuav dav. Tsis tas li ntawd, qhov txuas clamp ntiv nplhaib yuav tsum tsis txhob poob lub pas nrig los sis ntswj lub qhov.

Qhov kev ntsuas lub zog ntsuas txhua tus raug kuaj nyob rau hauv qhov xwm txheej ntawm cov cement zoo ntawm 260 ~ 300kgs / cm2, thiab qhov siab tshaj plaws kev nyab xeeb yuav tsum tsis pub tshaj 25% ntawm tus nqi ntsuas.

Thov teb:

Haum rau cov pob zeb ua thiab pob zeb ntuag ntuj, cov qauv hlau, hlau txuas, cov ntawv hauv qab, txhawb cov paib, nkhaus, kev tsheb nqaj hlau, lub qhov rais, kab hlau rhuav phab ntsa, tshuab, kab teeb, xov, hlua khi, thiab lwm yam.

Cim npe nrov: wedge thauj tog rau nkoj nqa ntsia liaj qhov rooj ntsia liaj qhov rooj, Suav teb, lwm tus neeg, hoobkas, lag luam, customized, lag luam wholesale, luv nqi, quotation, tsis tshua muaj nqe, hauv Tshuag, dawb coj mus kuaj

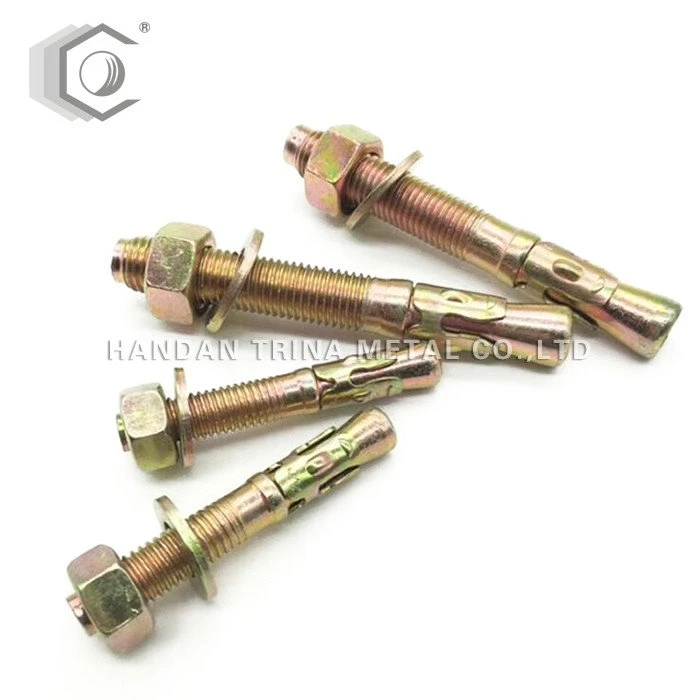

Npog Thauj Tog Rau Nkoj Of Elevator Bolt
