Loj: M1.4-M100

Deg npoo: ZP / DUB

Qeb: 4.8 / 8.8 / 10.9 / 12.9

Cov Khoom Siv: STAINLESS STEEL, STEEL

d	M1.4	M1.6	M2	M2.5	M3	M4	M5	M6	M8	M10	M12	(M14)	M16	(M18)
p	0.3	0.35	0.4	0.45	0.5	0.7	0.8	1	1.25	1.5	1.75	2	2	2.5
	-	-	-	-	-	-	-	-	1	1.25	1.25	1.5	1.5	1.5
	-	-	-	-	-	-	-	-	-	1	1.5	-	-	2
b	14	15	16	17	18	20	22	24	28	32	36	40	44	48
dk	2.6	3	3.8	4.5	5.5	7	8.5	10	13	16	18	21	24	27
	2.74	3.14	3.98	4.68	5.68	6.78	8.28	9.78	12.73	15.73	17.73	15.7	17.7	20.2
	2.46	2.86	3.62	4.32	5.32	6.78	8.28	9.78	12.73	15.73	17.73	20.67	23.67	26.6
ntaj	1.8	2	2.6	3.1	3.6	4.7	5.7	6.8	9.2	11.2	13.7	15.7	17.7	20.2
ds	1.4	1.6	2	2.5	3	4	5	6	8	10	12	14	16	18
ds	1.26	1.46	1.86	2.36	2.86	3.82	4.82	5.82	7.78	9.78	11.73	13.73	15.73	17.7
e	1.5	1.73	1.73	2.3	2.87	3.44	4.58	5.72	6.86	9.15	11.43	13.72	16	16
k	1.4	1.6	2	2.5	3	4	5	6	8	10	12	14	16	18
k	1.26	1.46	1.86	2.36	2.86	3.82	4.82	5.7	7.64	9.64	11.57	13.57	15.57	17.5
s	1.3	1.5	1.5	2	2.5	3	4	5	6	8	10	12	14	14
	1.32	1.52	1.52	2.02	2.52	3.02	4.02	5.02	6.02	8.025	10.025	12.032	14.032	14.03
	1.36	1.56	1.56	2.06	2.58	3.08	4.095	5.14	6.14	8.175	10.175	12.212	14.212	14.21
t	0.6	0.7	1	1.1	1.3	2	2.5	3	4	5	6	7	8	9
w	0.5	0.55	0.55	0.85	1.15	1.4	1.9	2.3	3	4	4.8	5.8	6.8	7.8

d	(M22)	M24	(M27)	M30	(M33)	M36	M42	M48	M56	M64	M72	M80	M90	M100
p	2.5	3	3	3.5	3.5	4	4.5	5	6.5	6	6	6	6	6
	1.5	2	2	2	2	3	3	3	4	4	4	4	4	4
	2	-	-	-	-	-	-	-	-	-	-	-	-	-
b	56	60	66	72	78	84	96	108	124	140	156	172	192	212
dk	33	36	40	45	50	54	63	72	84	96	108	120	135	150
	33.39	36.39	40.39	45.39	50.39	54.46	63.46	72.46	84.54	96.54	108.54	120.54	135.63	150.63
	32.61	35.61	39.61	44.61	49.61	53.54	62.54	71.54	83.46	95.46	107.46	119.46	134.37	149.37
ntaj	24.4	26.4	30.4	33.4	36.4	39.4	45.5	52.6	63	71	79	87	97	107
ds	22	24	27	30	33	36	42	48	56	64	72	80	90	100
ds	21.67	23.67	26.67	29.67	32.61	35.61	41.61	47.61	55.54	63.54	71.54	79.54	89.46	99.46
e	19.44	21.73	21.73	25.15	27.43	30.85	36.57	41.13	46.83	52.53	62.81	74.21	85.61	97.04
k	22	24	27	30	33	36	42	48	56	64	72	80	90	100
k	21.48	23.48	26.48	29.48	32.38	35.38	41.38	47.38	56.26	63.26	71.26	79.26	89.13	99.13
s	17	19	19	22	24	27	32	36	41	46	55	65	75	85
	17.05	19.065	19.065	22.065	24.065	27.065	32.08	36.08	41.08	46.08	55.1	65.1	75.1	85.12
	17.23	19.275	19.275	22.275	24.275	27.275	32.33	36.33	41.33	46.33	55.4	65.4	75.4	85.47
t	11	12	13.5	15.5	18	19	24	28	34	38	43	48	54	60
w	9.4	10.4	11.9	13.1	13.5	15.3	16.3	17.5	19	22	25	27	32	34

Yooj yim:

Hardness:

Hexagon qhov (socket) bolts tau faib raws li qhov nyuaj ntawm lub hau ntswj xaim, lub zog rub tawm, lub zog tawm los, thiab lwm yam, uas yog qib ntawm hexagon ntsawb ntsawb thiab qib dab tsi yog hexagon ntsawb ntsaws. Cov khoom siv sib txawv xav kom muaj qib sib txawv ntawm hexagon ntsawb lub pob nyem kom sib haum rau lawv.

Cov kaus mom hlau ua haujlwm hexagon ntsawb muaj cov qhab nia hauv qab no:

Hexagon ntsawb cov pob ua ke tau muab faib ua qhov dog dig thiab siab-zog raws li lawv qib kawm. Ordinary hexagon ntsawb lub pob xaws xa mus rau qeb 4.8, thiab lub zog loj hexagon ntsawb cov pob txawb xa mus rau qib kawm saum 8,8, suav nrog qib 10.9 thiab 12.9.

Tsim cov txheej txheem:

1. Tho qhov raws li txoj kab uas hla ntawm qhov sib txawv ntawm lub hexagon sab hauv rau qhov yuav tsum tau ua.

2. Upsetting sab hauv hexagon nrog lub taub hau txias tshuab.

3. Ib qho tuaj yeem tuaj yeem tawm nrog ib qho punch hexagonal.

Weclom tiv toj rau peb thiab tuaj saib peb lub Hoobkas!

FAQ:

Q: Koj lub sijhawm ua ntev npaum li cas?

A: Feem ntau 15-20 hnub. Nyob ntawm kom muaj nuj nqis ntawm qhov kev txiav txim.

Q: Hom kev thauj khoom twg yuav zoo dua?

A: Feem ntau, cov khoom lag luam hnyav, los ntawm hiav txwv yog qhov zoo dua, lwm qhov kev thauj mus los yog txais tau raws li koj qhov yuav tsum tau ua.

Q: Peb tuaj yeem lav qhov zoo li cas?

A: Txhua zaus cov qauv ua ntej khoom tsim ua ntej huab hwm coj ntau; Ib txwm kuaj xyuas ua ntej khoom xa tuaj;

Cim npe nrov: din912 allen ntsia liaj qhov rooj, Suav teb, lwm tus neeg, hoobkas, lag luam, customized, lag luam wholesale, luv nqi, quotation, tsis tshua muaj nqe, hauv Tshuag, dawb coj mus kuaj

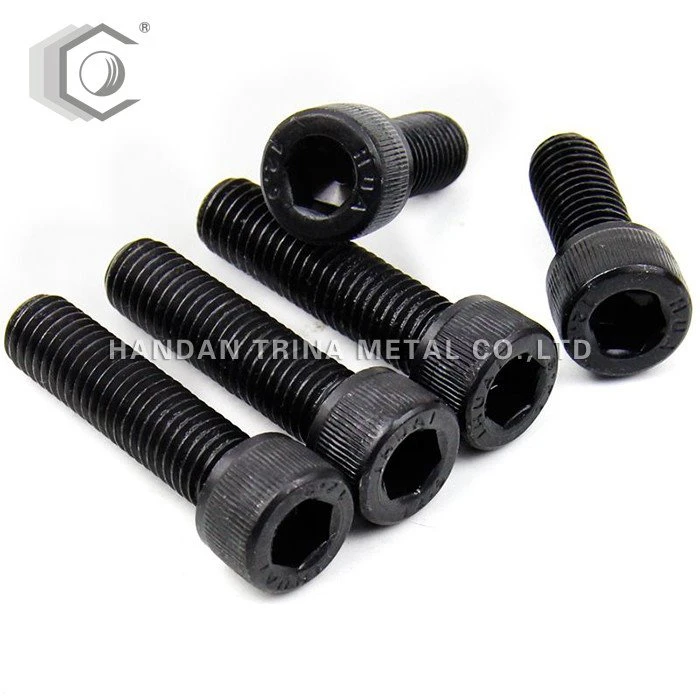

DIN912 Allen ntsia liaj qhov rooj
