Qhov loj me: kev cai
Nto: ZP, HDG
Cov Khoom Siv: Stainless Hlau, Hlau
d | 3/8 | 3/8 | 3/8 | 3/8 | 3/8 | 3/8 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 |
PP | 16 | 16 | 16 | 16 | 16 | 16 | 13 | 13 | 13 | 13 | 13 |
L | 6 | 8 | 10 | 12 | 14 | 16 | 6 | 8 | 10 | 12 | 14 |
6.125 | 8.125 | 10.125 | 12.125 | 14.125 | 16.125 | 6.125 | 8.125 | 10.125 | 12.125 | 14.125 | |
5.875 | 7.875 | 9.875 | 11.875 | 13.875 | 15.875 | 5.875 | 7.875 | 9.875 | 11.875 | 13.875 | |
n | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
1.125 | 1.125 | 1.125 | 1.125 | 1.125 | 1.125 | 1.125 | 1.125 | 1.125 | 1.125 | 1.125 | |
0.875 | 0.875 | 0.875 | 0.875 | 0.875 | 0.875 | 0.875 | 0.875 | 0.875 | 0.875 | 0.875 | |
b | 1.625 | 1.625 | 1.625 | 1.625 | 1.625 | 1.625 | 2.125 | 2.125 | 2.125 | 2.125 | 2.125 |
1.375 | 1.375 | 1.375 | 1.375 | 1.375 | 1.375 | 1.875 | 1.875 | 1.875 | 1.875 | 1.875 | |
d | 1/2 | 1/2 | 5/8 | 5/8 | 5/8 | 5/8 | 5/8 | 5/8 | 5/8 | 3/4 | 3/4 |
PP | 13 | 13 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 10 | 10 |
L | 16 | 18 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 8 | 10 |
16.125 | 18.125 | 6.125 | 8.125 | 10.125 | 12.125 | 14.125 | 16.125 | 18.125 | 8.188 | 10.188 | |
15.875 | 17.875 | 5.875 | 7.875 | 9.875 | 11.875 | 13.875 | 15.875 | 17.875 | 7.812 | 9.812 | |
n | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 3 | 3 |
1.125 | 1.125 | 2.125 | 2.125 | 2.125 | 2.125 | 2.125 | 2.125 | 2.125 | 3.188 | 3.188 | |
0.875 | 0.875 | 1.875 | 1.875 | 1.875 | 1.875 | 1.875 | 1.875 | 1.875 | 2.812 | 2.812 | |
b | 2.125 | 2.125 | 4.188 | 4.188 | 4.188 | 4.188 | 4.188 | 4.188 | 4.188 | 4.25 | 4.25 |
1.875 | 1.875 | 3.812 | 3.812 | 3.812 | 3.812 | 3.812 | 3.812 | 3.812 | 3.75 | 3.75 | |
d | 3/4 | 3/4 | 3/4 | 3/4 | 3/4 | 1 | 1 | 1 | 1 | 1 | 1 |
PP | 10 | 10 | 10 | 10 | 10 | 8 | 8 | 8 | 8 | 8 | 8 |
L | 12 | 14 | 16 | 18 | 24 | 10 | 12 | 14 | 16 | 18 | 24 |
12.188 | 14.188 | 16.188 | 18.188 | 24.25 | 10.188 | 12.188 | 14.188 | 16.188 | 18.188 | 24.25 | |
11.812 | 13.812 | 15.812 | 17.812 | 23.75 | 9.812 | 11.812 | 13.812 | 15.812 | 17.812 | 23.75 | |
n | 3 | 3 | 3 | 3 | 3 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 |
3.188 | 3.188 | 3.188 | 3.188 | 3.188 | 3.688 | 3.688 | 3.688 | 3.688 | 3.688 | 3.688 | |
2.812 | 2.812 | 2.812 | 2.812 | 2.812 | 3.312 | 3.312 | 3.312 | 3.312 | 3.312 | 3.312 | |
b | 4.25 | 4.25 | 4.25 | 4.25 | 4.25 | 6.25 | 6.25 | 6.25 | 6.25 | 6.25 | 6.25 |
3.75 | 3.75 | 3.75 | 3.75 | 3.75 | 5.75 | 5.75 | 5.75 | 5.75 | 5.75 | 5.75 |

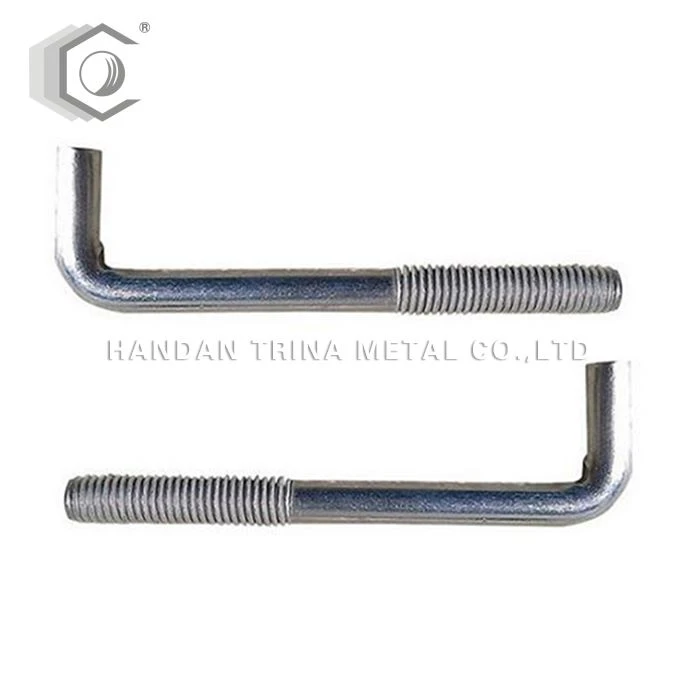

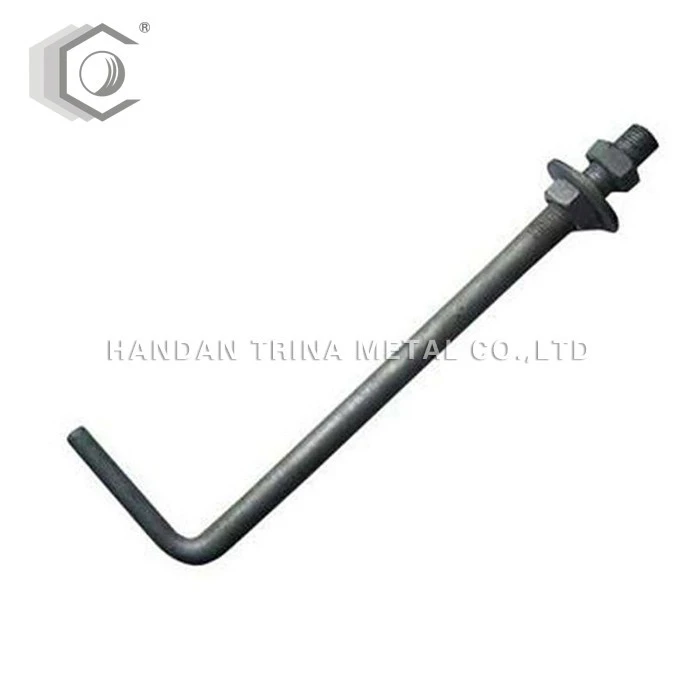

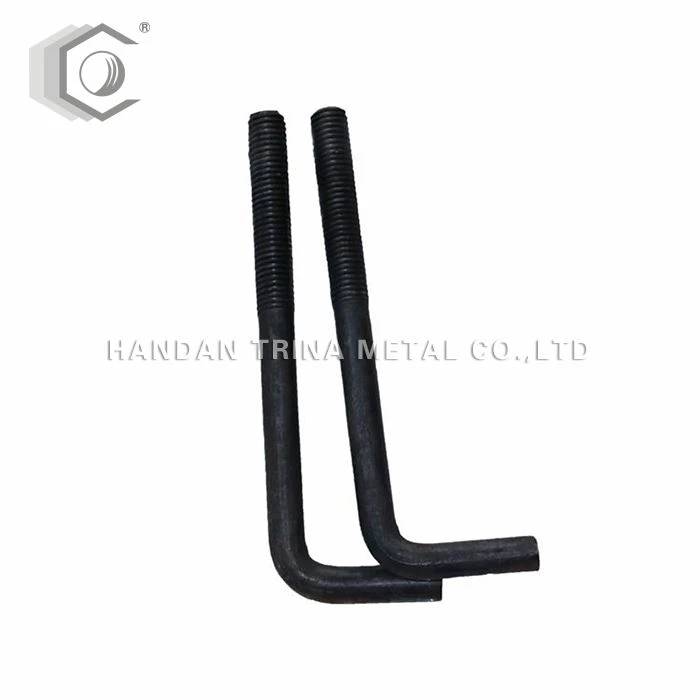

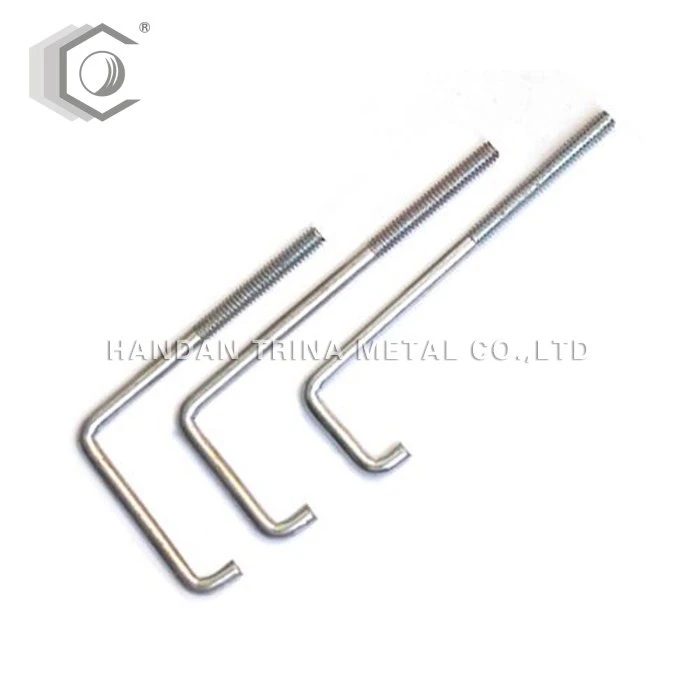

L-puab tus kheej thauj tog rau nkoj bolts yog nquag siv cov tswv cuab rau cov cuab yeej anchoring steel ncej thiab lwm cov thauj tog rau nkoj. Lawv tau muaj npe vim tias lawv yog" L"-puab tus qauv. Kuj tseem hu ua: ncaj nqe lauj thauj tog rau nkoj ntsia liaj qhov rooj, 7 puab tog thauj tog rau nkoj, thauj tog rau nkoj, thauj tog rau nkoj nqa, thauj tog rau nkoj ntsia hlau, thauj tog rau nkoj hlau, thiab lwm yam.
Nws yog qhov tshwj xeeb tau tsim faus rau hauv cov pob zeb ua pob zeb thiab siv los ua lub hauv paus rau kev txhim kho ntau yam qauv steel txhawb nqa cov kem thiab cov cuab yeej siv tshuab. L-puab lub tog raj kheej bolt yog ib hom ntawm cov phaj thauj tog rau nkoj uas feem ntau siv.
Txoj kev plahaum:
1. Ib-zaug faus cov txheej txheem: thaum nchuav cov pob zeb ua pob, muab cov pob khawm khov. Thaum cov yees siab siab tau tswj tau los ntawm kev hla dhau, cov thauj tog rau nkoj yuav tsum tau ntim ib zaug.
2. Reserved qhov txujci: cov khoom siv nyob rau hauv qhov chaw, lub qhov tau ntxuav tawm, lub pob zeb thauj tog rau nkoj tau muab tso rau hauv lub qhov, thiab cov cuab yeej tau muab tso rau qhov chaw thiab kho kom zoo, thiab tom qab ntawd muab nchuav nrog tsis ntog cov pob zeb qhob ib theem siab dua qhov thawj lub hauv paus rau kev cog lus. Cov. Qhov kev ncua deb ntawm qhov nruab nrab ntawm cov thauj tog rau nkoj txuas rau ntug ntawm lub hauv paus yuav tsum tsis pub tsawg tshaj 4d (d yog lub taub ntawm pobtawb thauj tog rau nkoj), thiab yuav tsum tsis pub tsawg dua 150 hli (d≤20, yuav tsum tsis pub tsawg tshaj 100 hli ), thiab tsis pub tsawg tshaj li ib nrab ntawm qhov dav ntawm cov phaj thauj tog rau nkoj Ntxiv 50 hli. Thaum cov kev cai saum toj saud tsis tuaj yeem ua tiav, yuav tsum muaj kev ntsuas tsim nyog los txhawb nws. Txoj kab uas hla ntawm lub thauj tog rau nkoj siv rau cov qauv yuav tsum tsis pub tsawg dua 20mm. Thaum raug av qeeg, ob chav txiv ntseej yuav tsum tau siv rau kev kho, lossis lwm qhov kev ntsuas zoo los tiv thaiv xoob yuav tsum tau saws, tab sis qhov ntev ntawm qhov ceev ntawm lub pob zeb hlua yuav tsum yog 5d ntev dua li qhov tsis-seismic anchoring ntev.
FAQ:
Q: Puas yog koj koom xwm lag luam lossis chaw tsim khoom?
A: Peb yog cov tsim khoom yog li peb cov khoom yog tus nqi qis tshaj.
Q: Koj puas muab cov qauv?
A: Yog lawm, peb tuaj yeem muab cov qauv dawb.
