Loj: M6-M48

Qeb: 4.8, 8.8, 10.9

Cov Khoom Siv: Stainless Hlau, Hlau

Daim ntawv thov: Lub tshuab ua haujlwm hnyav, chaw nres nkoj, tsheb, tsheb nqaj hlau, xaum xim

Nto: ZP / HDG / BLACK / Dacromet

DIN933 Nyhav / Mpcs （kg）
Cov ntsuas 'meter'	M3	M4	M5	M6	M7	M8	M10	M12	M14	M16	M18	M20	M22	M24	M30	M36	M48
ntev	M3	M4	M5	M6	M7	M8	M10	M12	M14	M16	M18	M20	M22	M24	M30	M36	M48
4	0.48
5	0.53	1.26
6	0.57	1.33	2.18	3.4
7	0.61	1.41	2.28	3.57	5.6
8	0.66	1.49	2.38	3.74	5.85	8.5	15.2
10	0.745	1.64	2.63	4.08	6.35	9.1	16.2	23.3	38
12	0.84	1.8	2.87	4.42	6.82	9.8	17.2	25	40	52.9
14	0.92	1.95	3.12	4.76	7.35	10.5	18.2	26.4	42	55.6
16	1	2.1	3.37	5.11	7.85	11.1	19.2	27.7	44	58.3	82	105	133	173
18	1.09	2.25	3.62	5.45	8.35	11.7	20.2	29.1	46	60.9	84.9	110	137	178
20	1.18	2.41	3.87	5.8	8.85	12.3	21.2	31	48	63.5	87.2	114	143	184
22	1.27	2.56	4.12	6.15	9.35	12.9	22.2	33	50	66.2	92.2	119	148	190
25	1.4	2.8	4.49	6.65	10	13.9	23.7	34.1	53	70.2	95.8	124	155	199
28	1.52	3.04	4.86	7.15	10.7	14.9	25.2	36.2	55.9	74.2	100	129	161	200
30	1.61	3.19	5.11	7.51	11.3	15.5	26.2	37.7	57.9	76.9	104	134	168	214
35		3.57	5.73	8.37	12.5	17.1	28.7	41.3	62.9	83.5	112	145	181	229	424	670
40		3.96	6.35	9.23	13.8	18.7	31.2	44.9	67.9	90.2	120	155	193	244	448	714	1590
45		4.34	6.99	10.10	15	20.36	33.7	48.5	72.9	97.1	128	165	206	259	472	748	1650
50		4.73	7.59	11	16.3	21.8	36.2	52	77.9	103	136	175	219	274	496	783	1710
55		5.12	8.21	11.9	17.5	23.4	38.7	55.6	82.8	110	145	186	232	289	519	817	1770
60		5.5	8.83	12.7	18.7	25	41.3	58.2	87.8	117	153	196	244	304	543	851	1830
65		5.89	9.45	13.6	20	26.6	43.8	62.8	92.8	123	161	207	257	319	566	886	1890
70		6.28	10.10	14.4	21.2	28.2	46.3	66.4	97.9	130	169	217	269	334	590	910	1950
75			10.70	15.3	22.5	29.8	48.8	70	102	137	177	2274	282	348	614	950	2010
80			11.30	16.2	23.7	31.4	51.3	73.6	107	144	186	238	295	363	637	990	2080
85					25	33	53.8	77.2	112	150	194	247	308	378	661	1020	2140
90					26.2	34.6	56.3	80.8	117	157	202	258	321	393	685	1060	2200
95					27.5	35.2	59.8	84.4	122	164	210	268	333	408	708	1100	2260
100					28.7	37.7	61.3	88	127	170	218	279	346	423	732	1140	2320
110						40.9	66.4	95.2	137	184	235	300	371	453	779	1200	2450
120							71.4	102	147	197	251	320	397	483	827	1260	2570
130							76.4	109	157	210	268	340	421	513	874	1330	2690
140							81.4	116	167	224	284	361	448	543	921	1400	2820
150							86.4	123	177	237	300	381	473	572	969	1470	2940
160											316	402	498	602	1010	1540	3060
170											332	422	423	632	1060	1610	3180
180											348	442	548	662	1110	1680	3310
190											364	462	573	692	1160	1740	3430
200											380	484	598	772	1210	1810	3560

Lub zog& Qhov zoo

1. Kaum xyoo ntawm kev paub ntau lawm, hauv kev lag luam kho vajtse muaj lub koob meej.

2. Cov kws tshaj lij tus neeg ua haujlwm tau txuas nrog cov qhua, muaj kev sib txuas lus kom zoo.

3. Kev cob qha cov cuab yeej, cov khoom lag luam zoo tau lees tias.

Cov lus qhia:

DIN933 Outer hexagon ntsia liaj qhov rooj ua ib hom fasteners, yog kom ua qhov txuas nrawm nrog ntau qhov kev siv ntawm cov chav kawm ntawm cov khoom siv kho tshuab, dav siv ntau yam tshuab, khoom siv, tsheb, nkoj, tsheb nqaj hlau, txuas hniav, vaj tsev, cov qauv, cov cuab yeej, cov khoom siv, cov khoom siv, tshuaj lom neeg, cov khoom siv thiab cov khoom siv saum toj saud, tuaj yeem pom ntau yam fasteners. Nws yog tsiag ntawv los ntawm ntau cov kev qhia tshwj xeeb, kev ua haujlwm thiab siv, thiab cov degree ntawm standardization, serialization, generalization kuj tseem siab heev.

Q: Vim li cas kuv thiaj yuav tsum xaiv koj?

A: (1) Tiv tauj peb nrog koj cov lus nug ntxaws ntxaws, koj yuav teb rau hauv 24 teev.

(2) Koj tau cog lus tias koj yuav tau txais qhov zoo tshaj plaws, tus nqi thiab kev pabcuam.

(3) Peb' xav muab qauv rau koj paub meej.

(4) Kev nthuav dav zoo nrog cov kev pab cuam tom qab muag.

(5) Txhua cov txheej txheem yuav raug tshuaj xyuas los ntawm QC lub luag hauj lwm uas muaj kev ruaj ntseg txhua yam khoom' s zoo.

Cim npe nrov: din933 sab nraud hexagon ntsia liaj qhov rooj, Suav teb, cov chaw muag khoom, lub Hoobkas, lag luam, lag luam, lag luam wholesale, luv nqi, quotation, tsis tshua muaj nqe, hauv Tshuag, dawb qauv

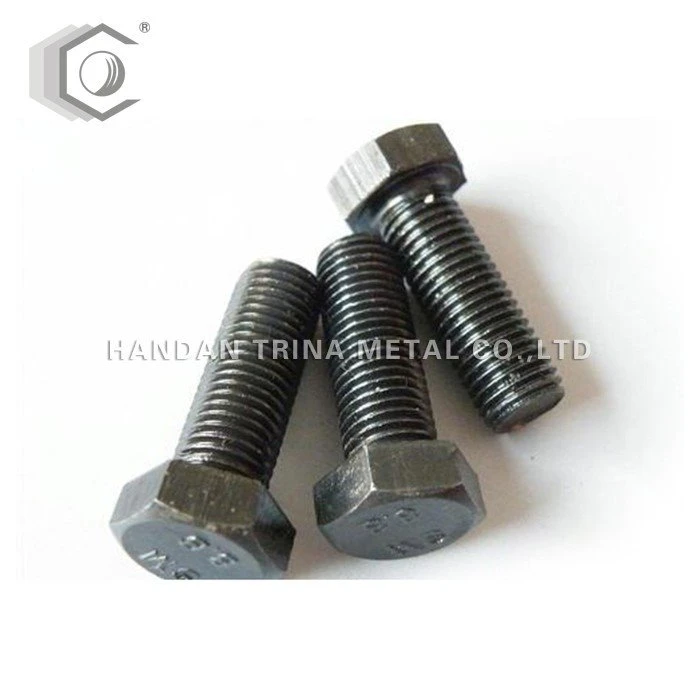

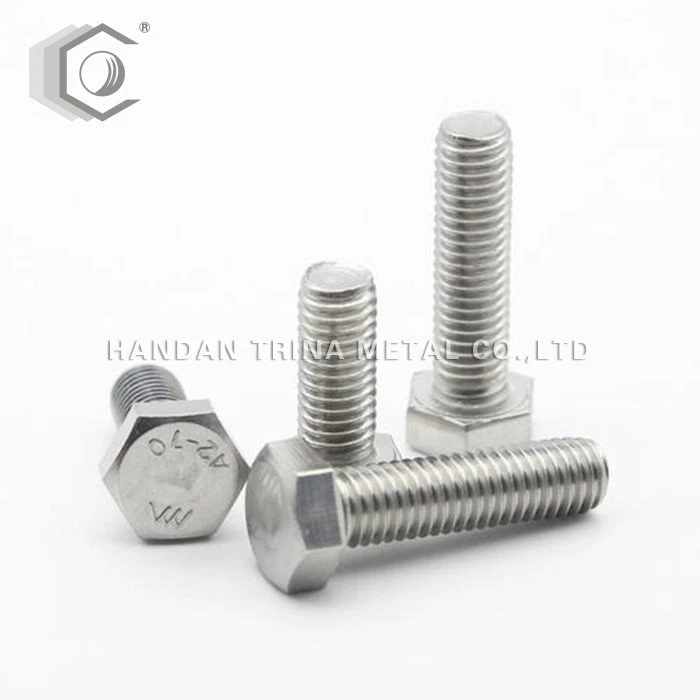

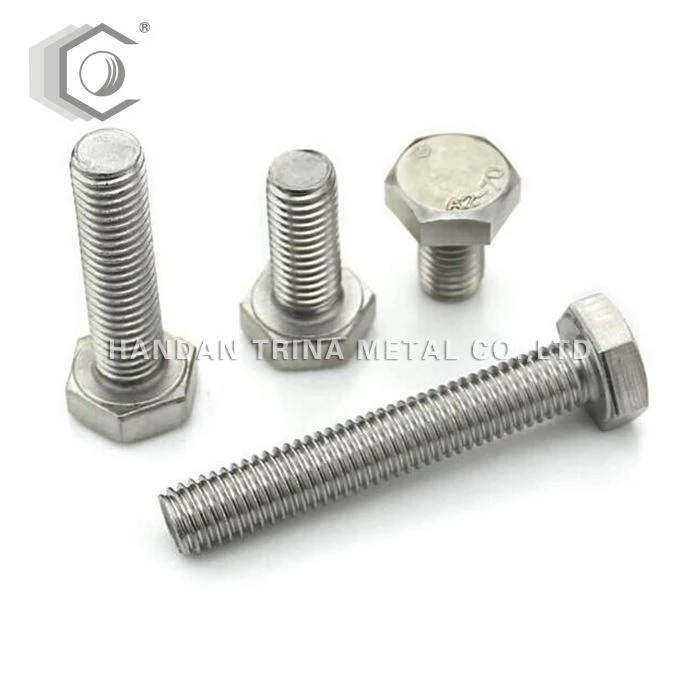

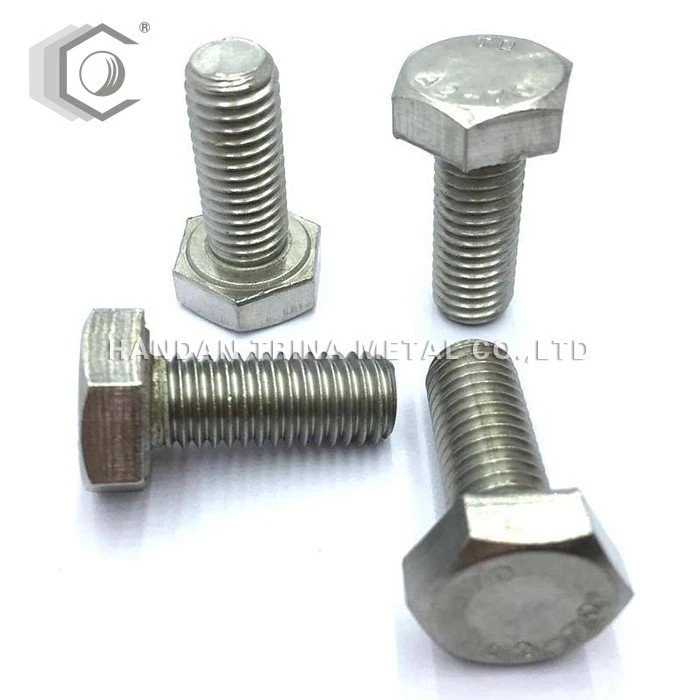

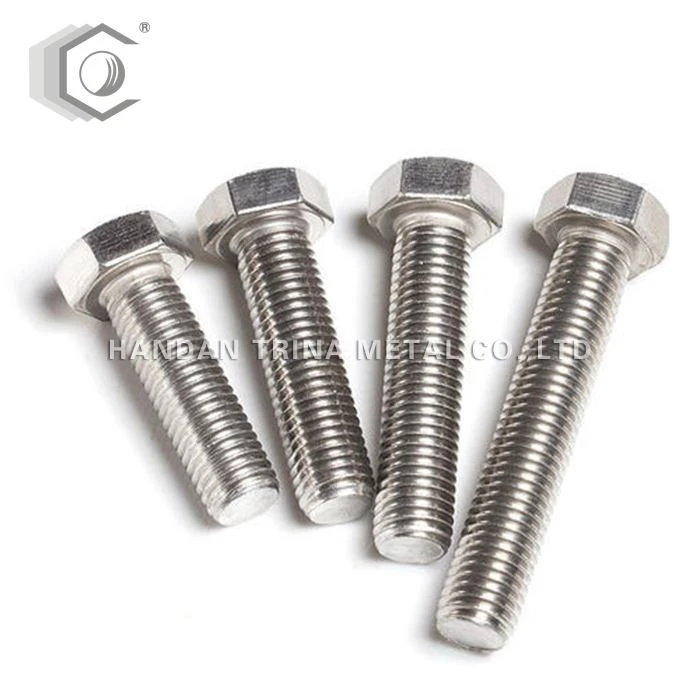

DIN933 Txheej Sab Nraud Hexagon Bolt
