Qhov Coob ： M4-M24
Nto ： ZP
Khoom siv: Stainless hlau
d | M4 | M5 | M6 | M8 | M10 | M10 | M12 | M12 |
P | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.5 | 1.75 | 1.75 |
/ | / | / | 1 | 1 | 1 | 1.5 | 1.5 | |
/ | / | / | / | 1.25 | 1.25 | 1.25 | 1.25 | |
ntaj | 4 | 5 | 6 | 8 | 10 | 10 | 12 | 12 |
4.6 | 5.75 | 6.75 | 8.75 | 10.8 | 10.8 | 13 | 13 | |
dk | 6.5 | 7.5 | 9.5 | 12.5 | 16 | 15 | 18 | 17 |
dw | 5.8 | 6.8 | 8.3 | 11.3 | 15.3 | 14.3 | 17.2 | 16.2 |
e | 7.66 | 8.79 | 11.05 | 14.38 | 18.9 | 17.77 | 21.1 | 20.03 |
7.5 | 8.63 | 10.89 | 14.2 | 18.72 | 17.59 | 20.88 | 19.85 | |
x | 1.4 | 1.6 | 2 | 2.5 | 3 | 3 | / | / |
/ | / | / | 2 | 2 | 2 | / | / | |
/ | / | / | / | 2.5 | 2.5 | / | / | |
G | / | / | / | / | / | / | 6.4 | 6.4 |
/ | / | / | / | / | / | 5.6 | 5.6 | |
/ | / | / | / | / | / | 4.9 | 4.9 | |
h | 8 | 10 | 12 | 15 | 18 | 18 | 22 | 22 |
7.64 | 9.64 | 11.57 | 14.57 | 17.57 | 17.57 | 21.48 | 21.48 | |
7.42 | 9.42 | 11.3 | 14.3 | 17.3 | 17.3 | 21.16 | 21.16 | |
m | 3.2 | 4 | 5 | 6.5 | 8 | 8 | 10 | 10 |
2.9 | 3.7 | 4.7 | 6.14 | 7.64 | 7.64 | 9.64 | 9.64 | |
mw | 2.32 | 2.96 | 3.76 | 4.91 | 6.11 | 6.11 | 7.71 | 7.71 |
SR | 3.25 | 3.75 | 4.75 | 6.25 | 8 | 7.5 | 9 | 8.5 |
s | 7 | 8 | 10 | 13 | 17 | 16 | 19 | 18 |
6.78 | 7.78 | 9.78 | 12.73 | 16.73 | 15.73 | 18.67 | 17.73 | |
6.64 | 7.64 | 9.64 | 12.57 | 16.57 | 15.57 | 18.48 | 17.57 | |
t | 5.26 | 7.21 | 7.71 | 10.65 | 12.65 | 12.65 | 15.65 | 15.65 |
5.74 | 7.79 | 8.29 | 11.35 | 13.35 | 13.35 | 16.35 | 16.35 | |
w | 2 | 2 | 2 | 2 | 2 | 2 | 3 | 3 |
Kg | / | / | 4.66 | 11 | 20.1 | / | 28.3 | / |
Thaum siv ua ke nrog ib txoj xov fastener nrog rau sab nraud txiv neej xov, domed kawg encloses xov sab nraud ntawm cov xov fastener, los tiv thaiv xov nws tus kheej lossis tiv thaiv cov khoom nyob ze los ntawm kev sib cuag nrog cov xov. Tsis tas li ntawd, lub dome muab qhov ua tiav zoo dua.

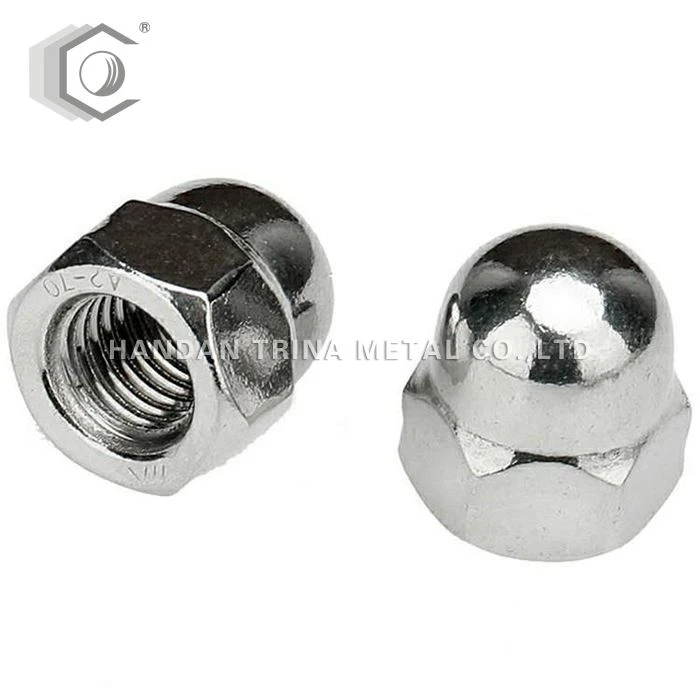

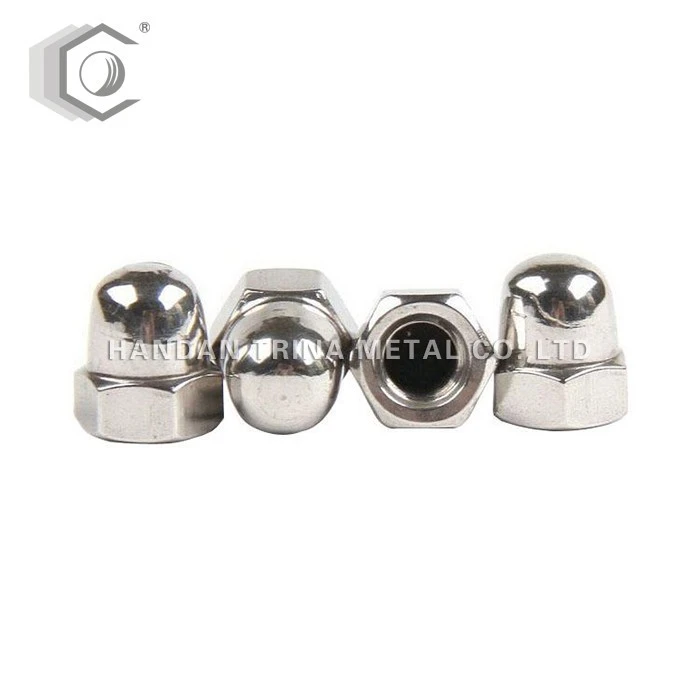

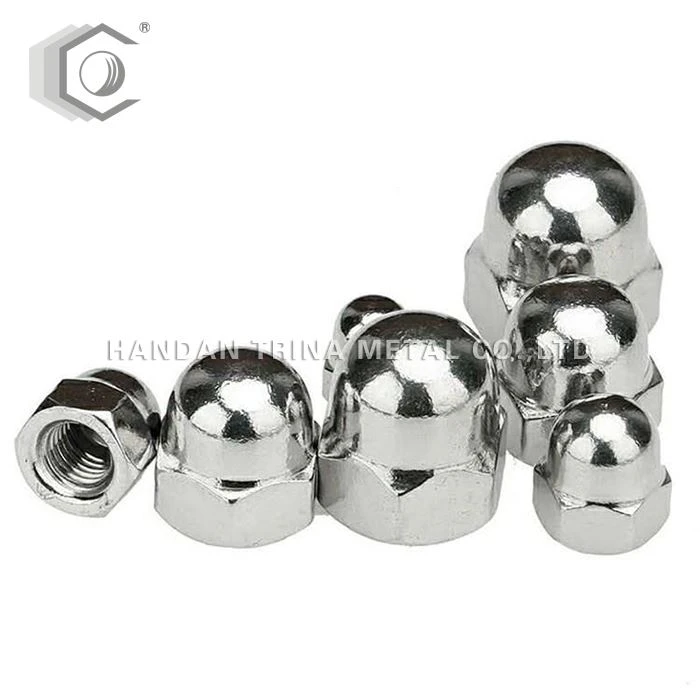

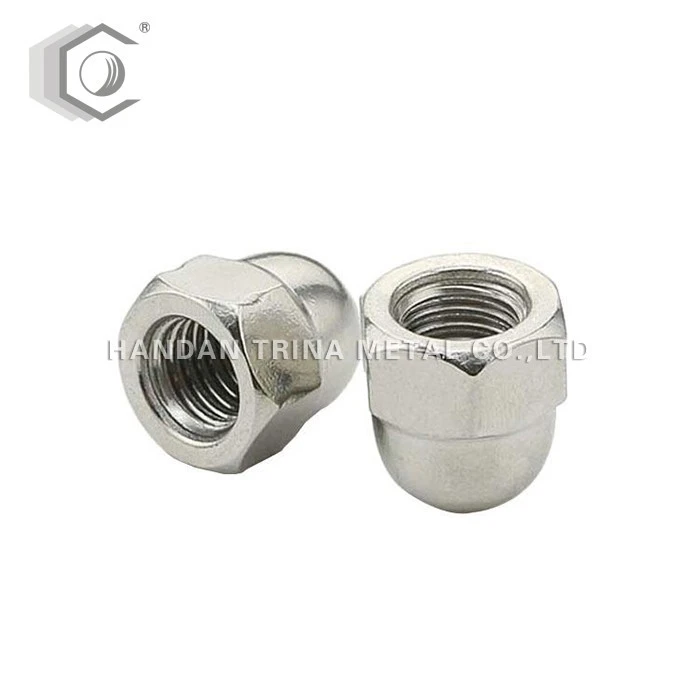

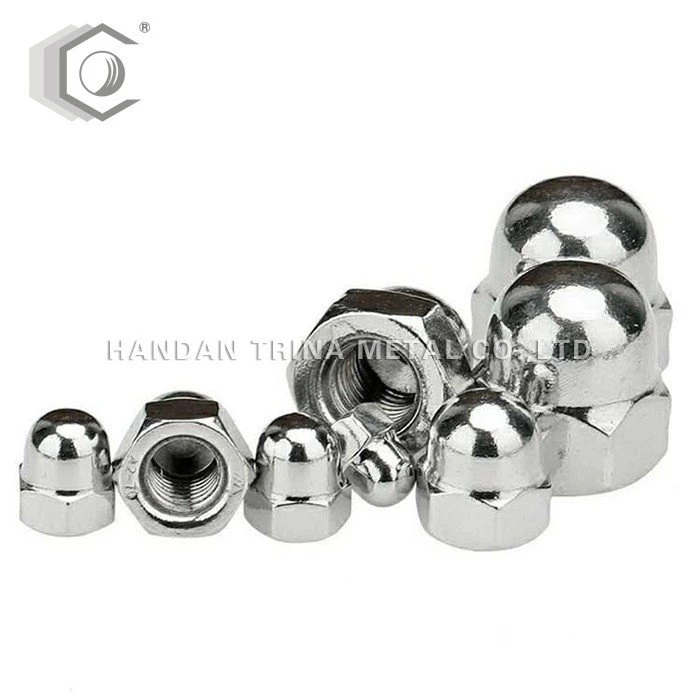

* Lub hau noob txiv yog ib hom ntawm cov khawm ris npe tom qab nws cov duab.
* Nws yog noob txiv uas muaj domed sab saum toj kom tiv thaiv kev sib cuag nrog sab nraud xov.
* Hex txiv ntoo nrog lub qhov kawg kaw.
* Domed xov los tiv thaiv cov xov sab nraud.
* Cov style nrov tshaj plaws.
* Qhov Tshem Tawm yooj yim.
* Zoo nkauj tiav lawm.
