Qhov Loj: M5-M22
Nto ： ZP
Khoom siv: Stainless hlau
d | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M20 |
P | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 |
/ | / | 1 | 1.25 | 1.5 | 1.5 | 1.5 | 1.5 | |
/ | / | / | (1.0) | (1.25) | / | / | / | |
c | 1 | 1.1 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 3 |
ntaj | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 20 |
5.75 | 6.75 | 8.75 | 10.8 | 13 | 15.1 | 17.3 | 21.6 | |
dc | 11.8 | 14.2 | 17.9 | 21.8 | 26 | 29.9 | 34.5 | 42.8 |
dw | 9.8 | 12.2 | 15.8 | 19.6 | 23.8 | 27.6 | 31.9 | 39.9 |
e | 8.79 | 11.05 | 14.38 | 16.64 | 20.03 | 23.36 | 26.75 | 32.95 |
m | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 20 |
4.7 | 5.7 | 7.6 | 9.6 | 11.6 | 13.3 | 15.3 | 18.9 | |
mw | 2.2 | 3.1 | 4.5 | 5.5 | 6.7 | 7.8 | 9 | 11.1 |
s | 8 | 10 | 13 | 15 | 18 | 21 | 24 | 30 |
7.78 | 9.78 | 12.73 | 14.73 | 17.73 | 20.67 | 23.67 | 29.67 | |
r | 0.3 | 0.36 | 0.48 | 0.6 | 0.72 | 0.88 | 0.96 | 1.2 |

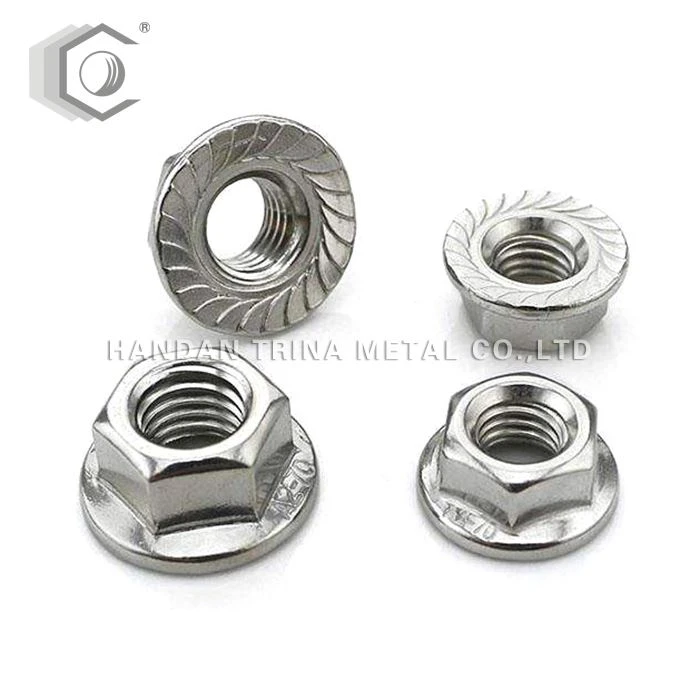

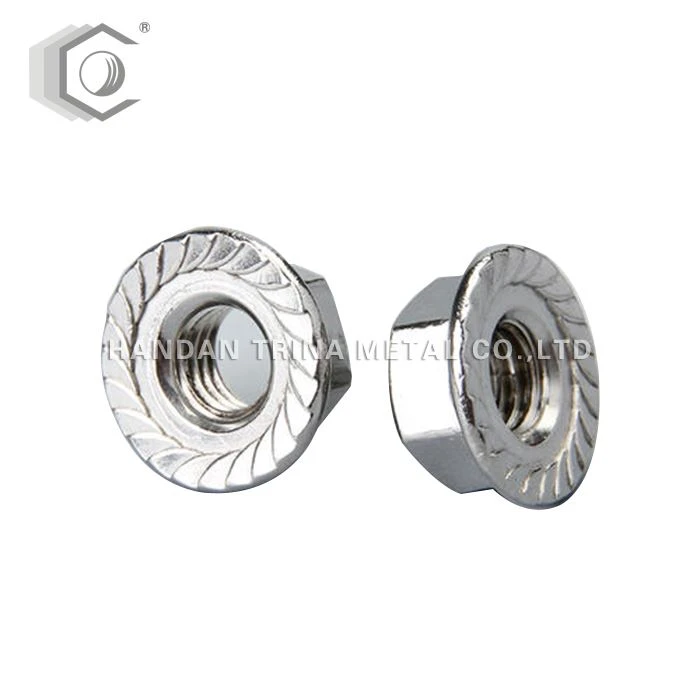

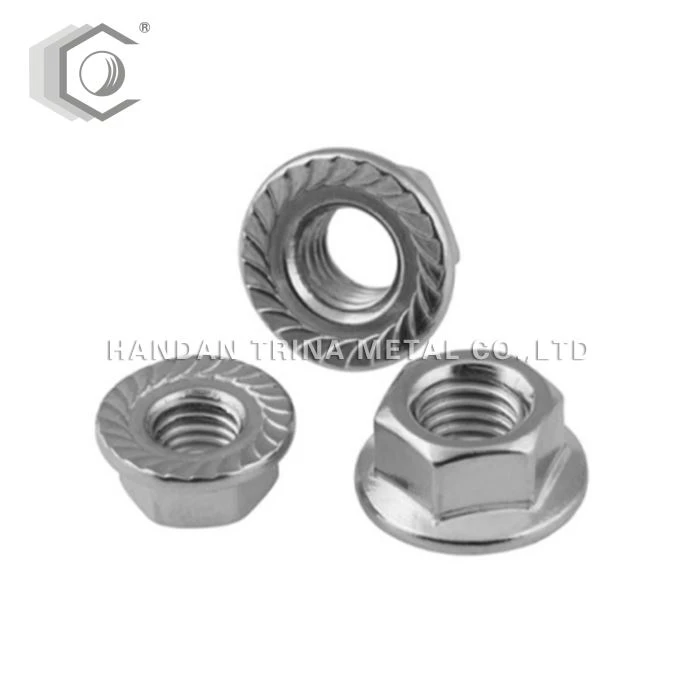

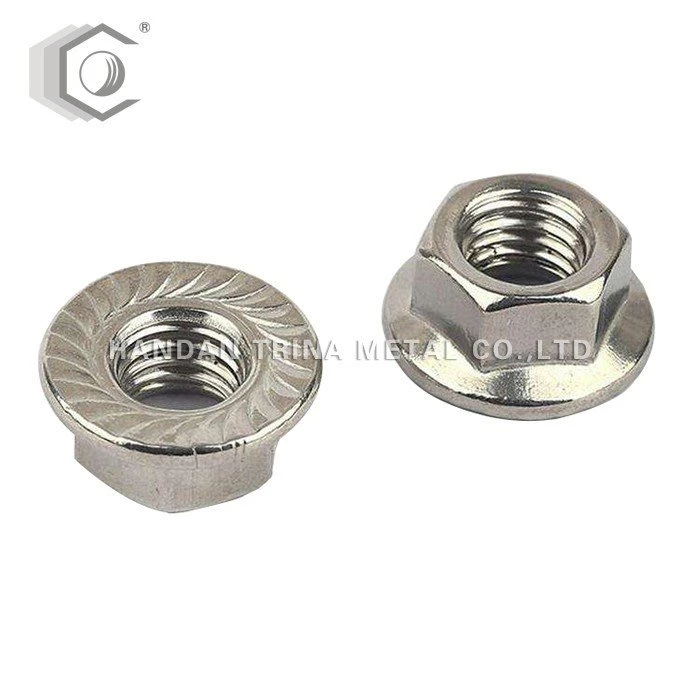

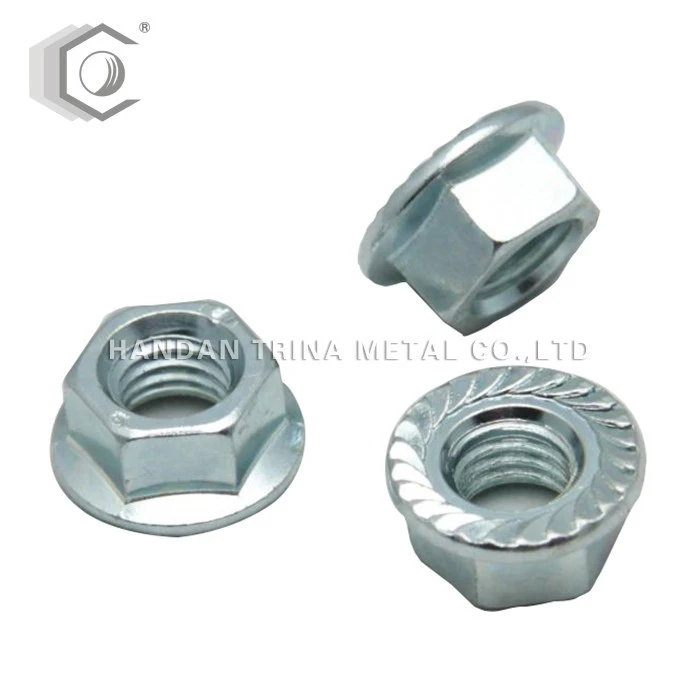

Cov txiv ntseej flange muaj qhov dav dav ntawm ib kawg, uas tuaj yeem siv los ua cov roj hmab sib xyaw. Qhov no yog siv los faib cov siab ntawm cov txiv ntoo ntawm lub qhov ruaj ruaj, thiaj li txo qhov ua kom puas ntawm qhov feem thiab ua rau nws tsis tshua muaj qhov tawm vim qhov tsis ncaj ntawm qhov ua kom ceev nrawm. Nws yog feem ntau hexagonal, ua los ntawm cov tawv hlau, thiab feem ntau yog coated nrog zinc. Nrog rau cov flange tig, nws pab tsim cov qauv ruaj khov dua yam tsis muaj kev cuam tshuam cov khoom tiav zoo li serrated flange txiv ntoo.
Feem ntau, cov flange tau tsau thiab tig nrog cov txiv ntoo. Lub flange yuav tau serrated kom muab cov xauv kom ua tiav. Cov ntawv qaij yog lub kaum pob kom cov txiv ntoo tsis tig rau hauv kev coj ntawm loosening lub txiv ntoo. Vim tias cov lus qhuab qhia, lawv tsis tuaj yeem siv nrog cov ntxhua khaub ncaws lossis ntawm cov chaw khawb. Txoj kev pabcuam pab tiv thaiv kom tsis txhob muaj kev vibration ntawm lub txiv ntoo los ntawm txav mus sai, thiaj li tswj tau qhov kev tuav quab yuam ntawm cov txiv ntoo.
